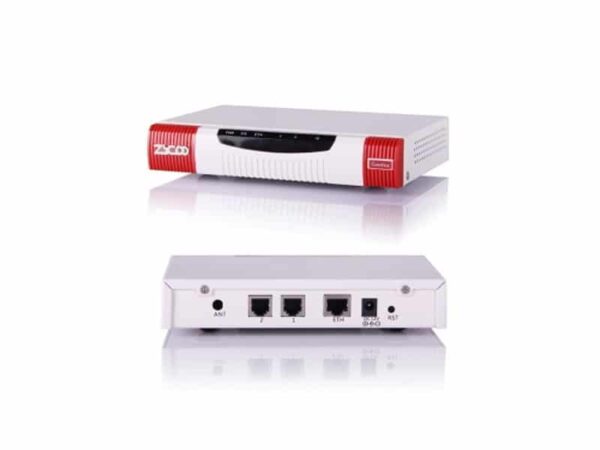

ZYCOO CooVox-U20-A202 2 FXO IP PBX proftech
ZYCOO CooVox-U20-A202 2 FXO IP PBX, IP Phone system is the second generation of Mini IP Phone System released from ZYCOO, meanwhile it’s the first Mobile IP Phone system with the ability to use the GSM or UMTS (3G) module to connect to the mobile network for data transport. CooVox-U20 is a next-generation smart IP PBX system designed and optimized for today’s business telecommunication needs. CooVox-U20 is an affordable, scalable, interoperable, secure and reliable solution which not only provides traditional PBX functions such as automated attendant and voicemail, but also many advanced features including remote extensions, remote office connection, conference bridge, call recording, call detail records (CDR), automatic call distribution (ACD), unified messaging (voice mail to email), and many more features.
ZYCOO CooVox-U20-A202 2 FXO IP PBXÂ Features
- Fax to Email
- 2 FXO, Optional 1 GSM Module
- WebRTC/ Web Dial
- Paging and Intercom function strengthens the working efficiency
- Monitor and Whisper
- HD Voice Codec G.722 for perfect voice quality
- Strong security features protect your system from hacking
PBX Features
- BLF (Busy Lamp Field)
- CDR (Call Detailed Record)
- Conference Room(3)
- DID (Direct Inward Dialing Number)
- DISA (Direct Inward System Access)
- Distinctive Ringtone
- DND
- DNIS
- Feature Codes
- Flash Operation Panel
- Follow Me
- IP Phone Provisioning
- IVR (Interactive Voice Responses)
- Mobility Extension
- Multi-language System Prompt
- Multiple Language of GUI (Chinese / English )
- One Touch Record
- Phone Book
- Pin Sets
- Record Files Download
- Ringgroup
- SIP Register with UDP/TCP/TLS
- SIP Trunk
- Skype for SIP
- Smart DID
- Speed Dial
- Spy
- SRTP
- System Log
- T.38 FAX(Pass-through)
- Time based rule
- Virtual FAX
- Voicemail &VoiceMail to EMail
Hardware Interface
- 1 Reset Button
- 1 Power Interface
- 1 Ethernet Interface
- 2 Analog Ports – three options 2 FXO, 2 FXS, 1 FXS & 1 FXO
- 1 GSM Antenna Interface (optional)
- 1 UMTS Interface for 3G Data (optional)
- LED indication
CPU: DualCore 500Mhz DSP
Storage: 4GB (Default SD Card )
SDRAM: 128MB DDR2
Power Supply:Â Input: 100~240V;Â Output: DC 12V, 1.0A
ZYCOO CooVox-U20-A202 2 FXO IP PBX specification
| Call Features | Call Back |
| Call Forward | |
| Call Hold | |
| Call Paging and Intercom | |
| Call Park | |
| Call Pickup | |
| Call Queue | |
| Call Recording | |
| Call Routing | |
| Blind Transfer | |
| Attended Transfer | |
| Call Waiting | |
| Caller ID | |
| Dial by Name | |
| Music On Hold/Transfer | |
| 3-Way Conference | |
| Video Call | |
| PBX Features | Black List |
| BLF (Busy Lamp Field) | |
| CDR (Call Detailed Record) | |
| Conference Room (3 Rooms) | |
| Call Monitoring | |
| DID (Direct Inward Dialing Number) | |
| DISA (Direct Inward System Access) | |
| Distinctive Ringtone | |
| DND (Do Not Disturb) | |
| DNIS (Dialed Number Identification Service) | |
| Feature Codes | |
| FOP (Flash Operation Panel) Status Monitoring | |
| Follow Me | |
| IVR (Interactive Voice Responses) | |
| Mobility Extension | |
| Multi-Language Prompts | |
| Multi-Language GUI | |
| One Touch Recording | |
| Phone Book | |
| Phone Provisioning | |
| Pin Set | |
| Record File Download | |
| Ringgroup | |
| SIP Register with UDP/TCP/TLS | |
| SIP Trunk | |
| Skype for SIP | |
| Smart DID | |
| Speed Dial | |
| Spy | |
| SRTP (Secure Realtime Transport Protocol) | |
| T.38 Fax (Pass-through) | |
| Time Based Rule | |
| Virtual Fax | |
| Voicemail & Voicemail to Email | |
| System Capacities | 10(Max) Concurrent Calls |
| Up to 30 IP Phone Registers/Extensions | |
| Recording: 21,000 mins (.gsm); 3,000 mins (.wav) | |
| Voicemail: 21,000 mins (.gsm); 3,000 mins (.wav) | |
| Codecs & Protocols | Audio Codecs: G.722/G.711-Ulaw/G.711-Alaw/ |
| G.726/G.729/GSM/SPEEX | |
| Video Codecs: H.261/H.263/H.263+/H.264 | |
| Protocols: SIP (RFC3261)/IAX2 | |
| DTMF: RFC2833/SIP INFO/In-Band | |
| Network Features | DDNS Client |
| DHCP Server | |
| IPv4/IPv6/IEEE802.1Q | |
| IP Assignment (PPPoE/DHCP/Static) | |
| SNMP v1/v2 | |
| TR069 | |
| Static Route Table | |
| Trouble Shooting (Ping/Traceroute) | |
| PoE (Power over Ethernet) | |
| VPN Client (N2N/L2TP/PPTP/OpenVPN) | |
| VPN Server (PPTP/L2TP/OpenVPN, Up to 10 Users) | |
| Security Features | Refuse SIP Register DoS |
| Refuse Abort Invite DoS | |
| Refuse SSH Login DoS | |
| Firewall | |
| Logs | PBX Log |
| Web Access Log | |
| PBX Debug Log | |
| Hardware Interfaces | 1 Reset Button |
| 1 Power Interface | |
| 1 Ethernet Interface | |
| 2 Analog Ports (FXO/FXS) | |
| 1 GSM/UMTS Interface (Onboard) | |
| Hardware Specifications | Processor: DualCore 500Mhz DSP |
| SDRAM: DDR2 128MB | |
| Storage: 4GB SD Card | |
| Power Supply: Input AC 100~240V, 50/60Hz; Output DC 12V/1A | |
| Environment | Working Temperature: 0 ~ 40°C |
| Storage Temperature: -20 ~ 55°C | |
| Humidity: 5 ~ 95% Non-condensing |
