Description

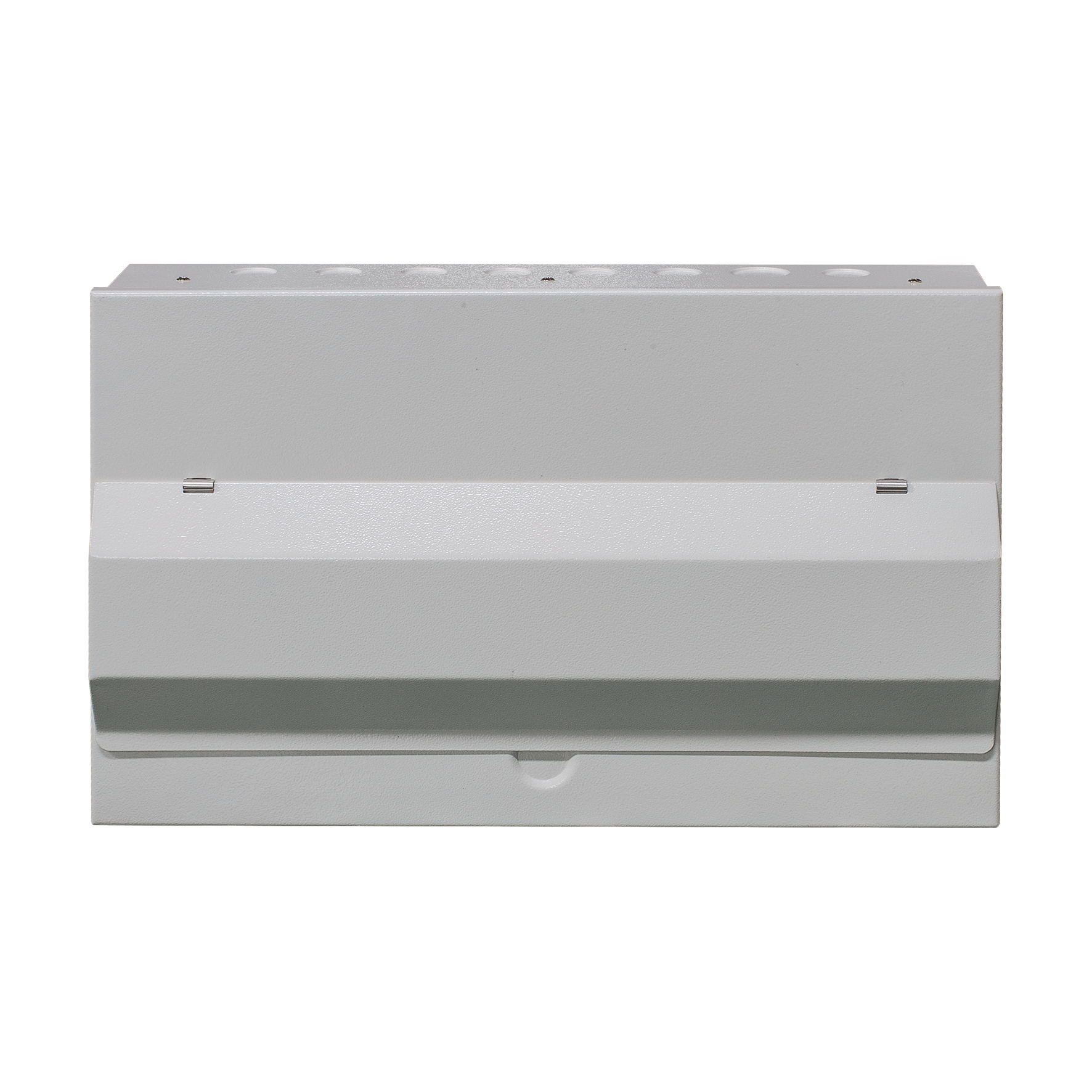

Hager electrical Consumer Unit 6 way 100amp RCD proftech

Hager electrical Consumer Unit 6 way 100amp RCD, is suitable for domestic households and other associated premises. Includes an Type A RCCB incomer to protect the consumer unit against electrical surges. The fuse box accepts the latest Hager MCBs and miniature RCBOs. The metal consumer unit is 18th edition compliant, making the fusebox suitable for exisitng and new build applications

 features

• Complete with fully fitted and pre-wired 2 pole 100A incoming isolator
• Ferruled cable ends for secure connections
• Fully enclosed metal construction body with drop-down metal cover
• Raised keyholes for secure easy installation
• Multiple circular cable entry knockouts top, bottom and sides (M25, M32 and M40) plus rear aperture/rounded cable entries
• Finished in white polyester powder coating to RAL9010
• Retained screws
• BS 7671 Amendment 3:2015 and BS EN 61439-3 compliant
• IP20 protection

specification

6-Way High Integrity
*Dual RCD
*Insulated Metal Consumer Unit
*Flexible Busbar
*100A Mains Switch
*2 x 63A 30mA RCDs
*6 x MCBs (2 x 6A, 1 x 16A, 2 x 32A & 1 x 40A)
*0 Blanks
*DIN Rail Supplied
*Fitted Spirit Level
*Easy Fit & Clean Cover

• No of Modules: 6 usable ways
• Complete with: 63A 30mA Type A RCD Isolator
• Quick release clip on MCB/RCBO
• Earth and neutral terminals
• Provides ample wiring space
• Metal DIN rail assembly
• Material: Metal
• Round knockouts (top, bottom and rear)
• Height: 246mm
• Width: 227mm
• Depth: 100mm
• Standards: BS 7671:2018, BS EN 61439-3 including Annex ZB (16kA rating)
